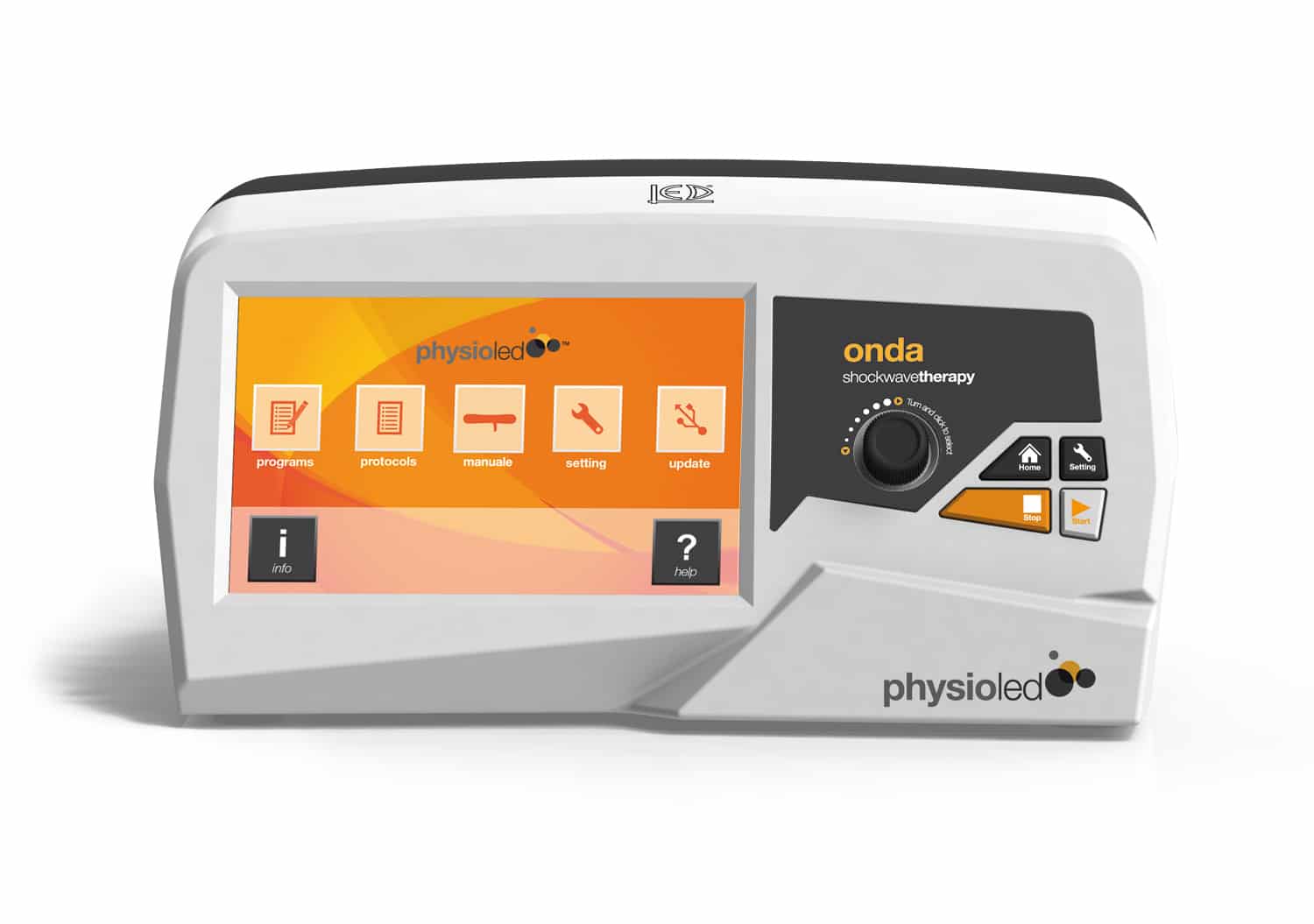

Shockwave Device Onda Specifications

• onda is a non-focal (radial) waves therapy device, which radically changes the therapeutic methodology of many  musculoskeletal system disorders
• Shockwave technology consists in generating an acoustic wave characterized by a high energy peak adjustable in a given frequency range.

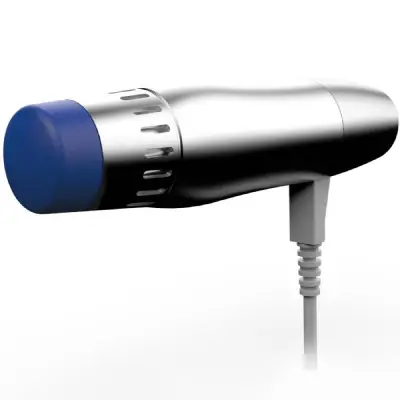

• An accelerated bullet in the handpiece, trough electromagnetic impulse, generates a mechanical pressure wave that is transferred to a specific area by irradiating the tissue
• Mechanical energy creates biostimulation reactions in the tissue, giving positive influencing in a wide range of orthopedic, physiotherapeutic and antalgic conditions.
• onda represents the best compromise between performance and practicality, delivering up to 185 mJ MAX (comparable around 6 bar of the pneumatic system) of variable frequency energy with a compact design to maximize the transportability of the unit.
• It also decreases the painful feeling by better distribution of the pressurized waves, allowing to the operator to obtain better therapeutic feedback.
• The high intensity delivery allows to act on tendon osteo calcifications improving the biological repair mechanism

Therapeutic Indications

• Bunions
•  Coxarthrosis
• Epicondylitis / Epitrocleitis
• Stress FractureFrom Periostitis
• Active Periostitis
• Risoisoarthrosis
• Tendinitis and tendinopathy
• Tendoperiostit

Shockwave Device Onda FEATURES

• Energy 60÷185 mJ
• Working mode 4 Modality (continuous/4/8/12 pulse)
• Working Frequency 1÷22 Hz
• Power supply 90-240 Vac / 50-60 Hz
• Maximum output power 250 VA
• Applicators 6/15/25 mm
